Descriere

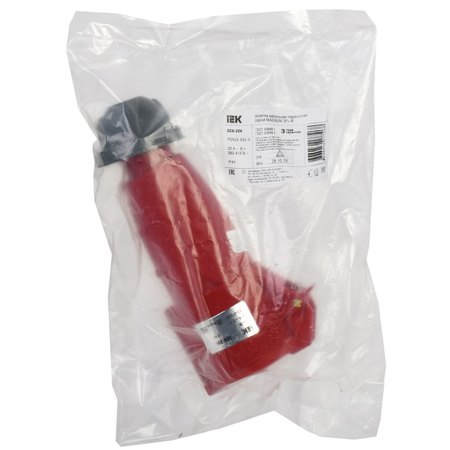

Original design of MAGNUM power connectors is developed by IEK engineers with strict compliance with requirements of Russian and international standards and considering demands of users – professional electricians and fitters. The solutions utilized in MAGNUM power connectors combine the best global practice and a number of unique special improvements from IEK engineers. The advanced design solutions combined with high-quality materials and high technological level of manufacture guarantee high reliability and safety of design, ergonomic and environment safe products, maximum convenience of mounting and dismounting of MAGNUM power connectors. MAGNUM power connectors can be used for connection of construction electrical equipment and tools, power supply of temporary structures and workers' cabins, machine-tools and other industrial equipment, sport and entertainment facilities, hotels, camp sites, etc. MAGNUM IEK power connectors are manufactured in Russia, at the main IEK industrial facility.The connectors plastic parts are made from self-extinguishing materials, have high strength and dielectric properties, withstand shock loads, wearing and attrition.
All connectors plastic parts have strengthened design able to withstand high stresses and harsh operating conditions.
Strengthened conductor connection assembly for all connectors.
The securely attached covers protect from ingress of dust and moisture into the connector.
Location of the body screws ensures maximum convenience.
Operation in moist environment is possible (IP44).
Item's rough surface ensures convenient grip, which is of particular importance when working in adverse weather conditions (e.g. at high humidity or negative temperatures).IEC-amperage: 32
Operating voltage range: 380-415
Nominal frequency: 50/60
Max. conductor cross section: 2,5-6,0
Nominal electric insulation strength: 500
Number of contacts: IEK_V0000072
Degree of protection (IP): EV006418
Clock hour position: 6
Number of poles: 3
Material: EV000139
Identification colour: EV000233
Connection system: EV001008
Cable entry: EV004016
Presence of lock: IEK_V0000070
Ambient temperature: -25...+40
Voltage acc. EN 60309-2: EV000154
Angle of plug: EV000164
